Applying microrobotics in endodontic treatment, diagnostics



Dental microrobots

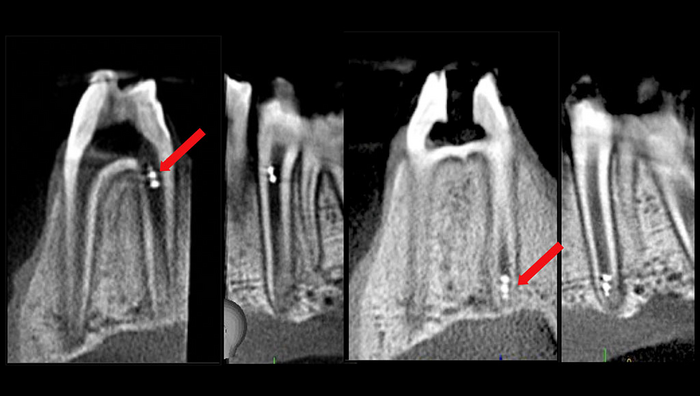

IMAGE: MAGNETICALLY ACTUATED 3D MOLDED ROBOTS ARE CONTROLLED PRECISELY TO TARGET THE APICAL REGION OF THE ROOT CANAL UNINTERRUPTED BY THE SURROUNDING PERIODONTIUM AS VISUALIZED AND TRACKED BY CBCT. view more

CREDIT: PENN DENTAL MEDICINE

With its irregularities and anatomical complexities, the root canal system is one of the most clinically challenging spaces in the oral cavity. As a result, biofilm not fully cleared from the nooks and crannies of the canals remains a leading cause of treatment failure and persistent endodontic infections, and there are limited means to diagnose or assess the efficacy of disinfection. One day, clinicians may have a new tool to overcome these challenges in the form of microrobots.

In a proof-of-concept study, researchers from Penn Dental Medicine and its Center for Innovation & Precision Dentistry (CiPD), have shown that microrobots can access the difficult to reach surfaces of the root canal with controlled precision, treating and disrupting biofilms and even retrieving samples for diagnostics, enabling a more personalized treatment plan. The Penn team shared their findings on the use of two different microrobotic platforms for endodontic therapy in the August issue of the Journal of Dental Research the work was selected for the issue’s cover.

“The technology could enable multimodal functionalities to achieve controlled, precision targeting of biofilms in hard-to-reach spaces, obtain microbiological samples, and perform targeted drug delivery, ” says Dr. Alaa Babeer, lead author of the study and a Penn Dental Medicine Doctor of Science in Dentistry (DScD) and endodontics graduate, who is now within the lab of Dr. Michel Koo, co-director of the CiPD .

In both platforms, the building blocks for the microrobots are iron oxide nanoparticles (NPs) that have both catalytic and magnetic activity and have been FDA approved for other uses.  In the first platform, a magnetic field is used to concentrate the NPs in aggregated microswarms and magnetically control them to the apical area of the tooth to disrupt and retrieve biofilms through a catalytic reaction. The second platform uses 3D printing to create miniaturized helix-shaped robots embedded with iron oxide NPs. These helicoids are guided by magnetic fields to move within the root canal, transporting bioactives or drugs that can be released on site.

“This technology offers the potential to advance clinical care on a variety of levels,” says Dr. Koo, co-corresponding author of the study with Dr. Edward Steager, a senior research investigator in Penn’s School of Engineering and Applied Science.

“One important aspect is the ability to have diagnostic as well as therapeutic applications. In the microswarm platform, we can not only remove the biofilm, but also retrieve it, enabling us identify what microorganisms caused the infection. In addition, the ability to conform to the narrow and difficult-to-reach spaces within the root canal allows for a more effective disinfection in comparison to the files and instrumentation techniques presently used.”

A Collaborative System

This microrobotics system is the outgrowth of collaborative work that has been ongoing for several years between Penn Dental Medicine and Penn Engineering. In a recent separate study, Dr. Koo and colleagues constructed the platform to electromagnetically control the microrobots, in that case, enabling microswarms of the iron oxide NPs to adopt different configurations and release antimicrobials on site to effectively treat and remove plaque from teeth.

“We see potential applications of microrobotics systems for both at-home oral care as well as in the dental office for more precise and effective tools for clinicians,” says Dr. Koo.

To determine the effectiveness of the endodontic microrobotic systems to disrupt and retrieve biofilm from the root canal, the researchers conducted experiments in vertically placed 3D printed tooth replicas in collaboration with Dr. Bekir Karabucak, Chair of Penn Dental Medicine’s Department of Endodontics. A mixed-species biofilm containing endodontic bacteria (Streptococcus gordoniiEnterococcus faecalisFusobacterium nucleatum, and Actinomyces israelii ) was prepared inside the teeth replicas and the NP suspension was introduced to the root canal. Using electromagnets, microswarms of NPs were created and precisely controlled to disrupt the biofilm. Upon analysis of the collected biofilm, they found all four species were detected, and using a microscope, all nanoparticles appeared to be removed from the root canal.

Breaking the Mold

The second system tested exploits the flexibility of iron oxide NPs as building blocks and involves creating a molded robotic system. Soft corkscrew-like molds in the form of a helicoid (two helices wrapped around a central axis) were 3D printed and filled with a NP-embedded gel. Using a magnetic field, the helicoids were shown to move through the canal with high efficiency to achieve chemical and mechanical disruption of biofilm. Of particular note is the added ability to load the helicoids with therapeutics for targeted drug delivery at the apical region of the root canal where the infection is in close proximity to the surrounding tissues.

In addition, the research team showed the unique ability of track the microrobots in real-time using existing imaging technologies such as intraoral scanner, dental x-ray, and cone-beam computed tomography that were capable of locating the helicoids in the intact tooth canal.

“Importantly, we demonstrated in an ex vivo model that the robots could be controlled by the magnetic field without interruption by the soft and hard tissue surrounding the teeth. In addition, they showed tremendous maneuverability from the top to bottom of the canal,” notes Dr. Karabucak, who explains the magnetic field for both of the endodontic systems tested would be generated by a small device in the oral cavity.

Broad Applications

Along with the potential to enhance endodontic treatment and tissue regeneration, the researchers see this technology as something that could have broad applications across medicine and industry.

“From disinfecting medical devices like catheters to ensuring clean water lines, this technology holds the potential to transform areas far beyond dental medicine,” adds Dr. Koo. “It could disrupt current modalities across disciplines.”



Alaa Babeer is a recent graduate of Penn Dental Medicine’s combined Endodontic residency and DScD program.

Michel Koo is a professor in the Department of Orthodontics and divisions of Community Oral Health and Pediatric Dentistry in Penn Dental Medicine and co-director of the Center for Innovation & Precision Dentistry.

Edward Steager is a senior research investigator in Penn’s School of Engineering and Applied Science.

Bekir Karabucak is chair and professor of Endodontics, director of postdoctoral Endodontics program and director of division of Advanced Dental Education at Penn Dental Medicine.

Additional coauthors on the paper are Penn Dental Medicine’s Min Jun Oh, Zhi Ren, Yuan Liu, Fernando Marques and Bekir Karabucak and State University of Rio de Janeiro School of Dentistry’s Ane Poly.

This work was supported in part by the National Institute for Dental and Craniofacial Research (grants R01 DE025848 and R56 DE029985), the National Research Foundation of Korea funded by the Ministry of Education (No. NRF-2021R1A6A3A03044553), Colgate-Palmolive Fellowship, and the NIDCR Postdoctoral Training Program under award number R90DE031532.
